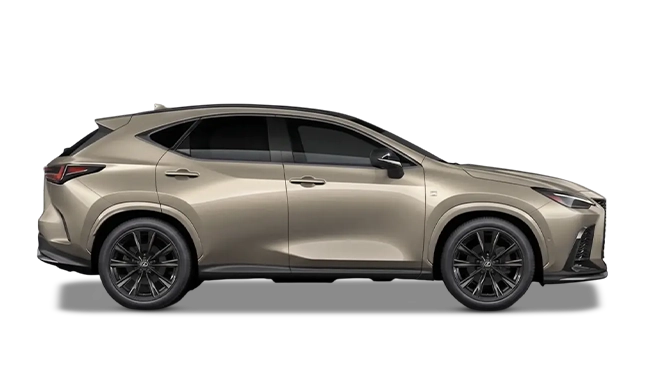

Lexus Lexus NX 350h Overtrail Grade

Name: Lexus Lexus NX 350h Overtrail Grade
Brand: Lexus
Availability: InStock

Lexus Lexus NX variant detail

Variant ex-showroom price On request 350h Overtrail Grade

Mileage

16.9 kmpl

Max Power

240 bhp (Combined Powertrain Output)

Max Torque

239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)

Transmission

Automatic (e-CVT) with Paddle Shifters

Fuel Type

Hybrid (Electric + Petrol)

Seating

You are viewing the 350h Overtrail Grade variant of Lexus Lexus NX. View the common model page to see all variants together.

The Lexus Lexus NX 350h Overtrail Grade is one of 4 available Lexus NX variants. Its ex-showroom price is On request. See the specifications and features below for this exact variant.

Variant highlights

Mileage: 16.9 kmpl
Max Power: 240 bhp (Combined Powertrain Output)
Max Torque: 239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)
Transmission: Automatic (e-CVT) with Paddle Shifters
Fuel Type: Hybrid (Electric + Petrol)

Before you decide

Compare this variant with the other available variants.
Check the on-road price for your city.
Confirm final features and availability with the seller.

Other Variants & Price (3)

* Ex-showroom price

Variant	Fuel	Transmission	Price *
350h Exquisite	Hybrid (Electric + Petrol)	Automatic (e-CVT) with Paddle Shifters	On request	View Details
350h Luxury	Hybrid (Electric + Petrol)	Automatic (e-CVT) with Paddle Shifters	On request	View Details
350h F-Sport	Hybrid (Electric + Petrol)	Automatic (e-CVT) with Paddle Shifters	On request	View Details

Engine & Transmission

Engine 2487 cc

Engine Type 2.5L Inline 4-cylinder 16-valve DOHC (A25B-FXS) with Lexus Hybrid Drive

Fuel Type Hybrid (Electric + Petrol)

Acceleration (0-100 kmph) 7.7 seconds

Alternate Fuel Not Applicable

Mileage (ARAI) 16.9 kmpl

City Mileage 15.0 kmpl

Max Torque 239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)

Max Motor Performance Front Motor: 179.6 HP / Rear Motor: 53.6 HP

Emission Standard BS6 Phase 2

Turbocharger / Supercharger No

Battery Lithium-ion Battery

Top Speed 200 kmph

Highway Mileage 18.1 kmpl

Battery Charging Self-Charging (Regenerative Braking)

Drivetrain E-Four (AWD All Wheel Drive)

Performance on Alternate Fuel Not Applicable

Electric Motor Assist Yes (Full Hybrid Assist)

Max Power (bhp@rpm) 240 bhp (Combined Powertrain Output)

Range Not Applicable

Driving Range Not Applicable

Others Adaptive Variable Suspension (AVS), Exclusive Moon Desert paint option, Blacked-out exterior accents, Geo Layer interior elements

Electric Motor Dual Permanent Magnet Synchronous Motors

Max Engine Torque (Nm@rpm) 239 Nm @ 4300-4500 rpm

Pure Electric Driving Mode Yes (Short Distances via EV Mode)

Transmission Automatic (e-CVT) with Paddle Shifters

E20 Compatibility Yes

Direct Start in CNG Not Applicable

Fuel Change Over Switch Not Applicable

Suspensions, Brakes, Steering & Tyres

Spare Wheel Space Saver Spare Wheel

Wheels 18-inch Matte Black Alloy Wheels

Steering Type Electric Power Steering

Front Suspension MacPherson Strut with Adaptive Variable Suspension

Rear Brake Type Ventilated Disc

Tyre Construction Radial - Tubeless

Front Tyres 235 / 60 R18 (Higher Profile Rough-Road Tyres)

Minimum Turning Radius(m) 5.7

Rear Suspension Trailing Arm Double Wishbone with Adaptive Variable Suspension

Front Brake Type Ventilated Disc

Four Wheel Steering No

Rear Tyres 235 / 60 R18 (Higher Profile Rough-Road Tyres)

Dimensions & Weight

Kerb Weight(kg) 1845

Height(mm) 1670

Width(mm) 1865

Length(mm) 4660

Ground Clearance 195 mm

Wheelbase(mm) 2690

Capacity

Fuel Tank Capacity(L) 55

Doors 5

Bootspace(L) 520

Seating Capacity 5

No of Rows 2

Specification	350h Exquisite	350h Overtrail Grade	350h Luxury	350h F-Sport
Engine & Transmission
Engine	2487 cc	2487 cc	2487 cc	2487 cc
Engine Type	2.5L Inline 4-cylinder 16-valve DOHC with Lexus Hybrid Drive	2.5L Inline 4-cylinder 16-valve DOHC (A25B-FXS) with Lexus Hybrid Drive	2.5L Inline 4-cylinder 16-valve DOHC (A25B-FXS) with Lexus Hybrid Drive	2.5L Inline 4-cylinder 16-valve DOHC with Lexus Hybrid Drive
Fuel Type	Hybrid (Electric + Petrol)	Hybrid (Electric + Petrol)	Hybrid (Electric + Petrol)	Hybrid (Electric + Petrol)
Acceleration (0-100 kmph)	7.7 seconds	7.7 seconds	7.7 seconds	7.7 seconds
Alternate Fuel	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Mileage (ARAI)	16.9 kmpl	16.9 kmpl	16.9 kmpl	16.9 kmpl
City Mileage	14.2 kmpl	15.0 kmpl	14.2 kmpl	14.2 kmpl
Max Torque	239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)	239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)	239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)	239 Nm @ 4300-4500 rpm (Engine) / 270 Nm (Front Motor) / 121 Nm (Rear Motor)
Max Motor Performance	Front Motor: 180 hp / Rear Motor: 54 hp	Front Motor: 179.6 HP / Rear Motor: 53.6 HP	Front Motor: 180 hp / Rear Motor: 54 hp	Front Motor: 180 hp / Rear Motor: 54 hp
Emission Standard	BS6 Phase 2	BS6 Phase 2	BS6 Phase 2	BS6 Phase 2
Turbocharger / Supercharger	No	No	No	No
Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery	Lithium-ion Battery
Top Speed	200 kmph	200 kmph	200 kmph	200 kmph
Highway Mileage	18.1 kmpl	18.1 kmpl	18.1 kmpl	18.1 kmpl
Battery Charging	Self-Charging (Regenerative Braking)	Self-Charging (Regenerative Braking)	Self-Charging (Regenerative Braking)	Self-Charging (Regenerative Braking)
Drivetrain	E-Four (AWD All Wheel Drive)	E-Four (AWD All Wheel Drive)	E-Four (AWD All Wheel Drive)	E-Four (AWD All Wheel Drive)
Performance on Alternate Fuel	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Electric Motor Assist	Yes (Full Hybrid Assist)	Yes (Full Hybrid Assist)	Yes (Full Hybrid Assist)	Yes (Full Hybrid Assist)
Max Power (bhp@rpm)	240 bhp (Combined Powertrain Output)	240 bhp (Combined Powertrain Output)	240 bhp (Combined Powertrain Output)	240 bhp (Combined Powertrain Output)
Range	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Driving Range	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Others	Lexus Safety System+ 3.0, 14-inch Touchscreen Display, Panoramic Sunroof	Adaptive Variable Suspension (AVS), Exclusive Moon Desert paint option, Blacked-out exterior accents, Geo Layer interior elements	14-inch Touch Screen Display, Panoramic View Monitor (360 Camera), Lexus Safety System+ 3.0, Premium Leather Seats with Memory	Adaptive Variable Suspension (AVS), Sport+ Driving Mode, F-Sport Performance Seats, G-Force Meter, Head-up Display (HUD)
Electric Motor	Dual Permanent Magnet Synchronous Motors	Dual Permanent Magnet Synchronous Motors	Dual Permanent Magnet Synchronous Motors	Dual Permanent Magnet Synchronous Motors
Max Engine Torque (Nm@rpm)	239 Nm @ 4300-4500 rpm	239 Nm @ 4300-4500 rpm	239 Nm @ 4300-4500 rpm	239 Nm @ 4300-4500 rpm
Pure Electric Driving Mode	Yes (Short Distances via EV Mode)	Yes (Short Distances via EV Mode)	Yes (Short Distances via EV Mode)	Yes (Short Distances via EV Mode)
Transmission	Automatic (e-CVT) with Paddle Shifters	Automatic (e-CVT) with Paddle Shifters	Automatic (e-CVT) with Paddle Shifters	Automatic (e-CVT) with Paddle Shifters
E20 Compatibility	Yes	Yes	Yes	Yes
Direct Start in CNG	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Fuel Change Over Switch	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Suspensions, Brakes, Steering & Tyres
Spare Wheel	Space Saver Spare Wheel	Space Saver Spare Wheel	Space Saver Spare Wheel	Space Saver Spare Wheel
Wheels	18-inch Dark Gray Metallic Alloy Wheels	18-inch Matte Black Alloy Wheels	20-inch Dark Premium Metallic Alloy Wheels	20-inch Gloss Black F-Sport Alloy Wheels
Steering Type	Electric Power Steering	Electric Power Steering	Electric Power Steering	Electric Power Steering
Front Suspension	MacPherson Strut	MacPherson Strut with Adaptive Variable Suspension	MacPherson Strut	MacPherson Strut with Adaptive Variable Suspension
Rear Brake Type	Ventilated Disc	Ventilated Disc	Ventilated Disc	Ventilated Disc
Tyre Construction	Radial - Tubeless	Radial - Tubeless	Radial - Tubeless	Radial - Tubeless
Front Tyres	235 / 60 R18	235 / 60 R18 (Higher Profile Rough-Road Tyres)	235 / 50 R20	235 / 50 R20
Minimum Turning Radius(m)	5.7	5.7	5.7	5.7
Rear Suspension	Trailing Arm Double Wishbone	Trailing Arm Double Wishbone with Adaptive Variable Suspension	Trailing Arm Double Wishbone	Trailing Arm Double Wishbone with Adaptive Variable Suspension
Front Brake Type	Ventilated Disc	Ventilated Disc	Ventilated Disc	Ventilated Disc
Four Wheel Steering	No	No	No	No
Rear Tyres	235 / 60 R18	235 / 60 R18 (Higher Profile Rough-Road Tyres)	235 / 50 R20	235 / 50 R20
Dimensions & Weight
Kerb Weight(kg)	1810	1845	1810	1845
Height(mm)	1660	1670	1660	1660
Width(mm)	1865	1865	1865	1865
Length(mm)	4660	4660	4660	4660
Ground Clearance	195 mm	195 mm	195 mm	195 mm
Wheelbase(mm)	2690	2690	2690	2690
Capacity
Fuel Tank Capacity(L)	55	55	55	55
Doors	5	5	5	5
Bootspace(L)	520	520	520	520
Seating Capacity	5	5	5	5
No of Rows	2	2	2	2
